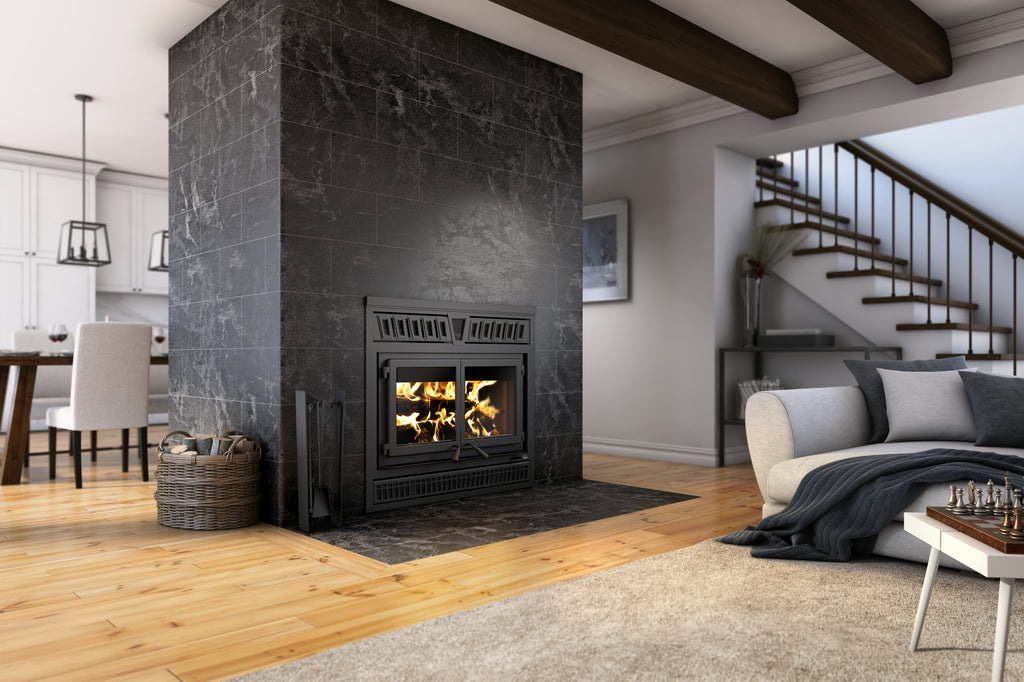

Waterloo - FP15

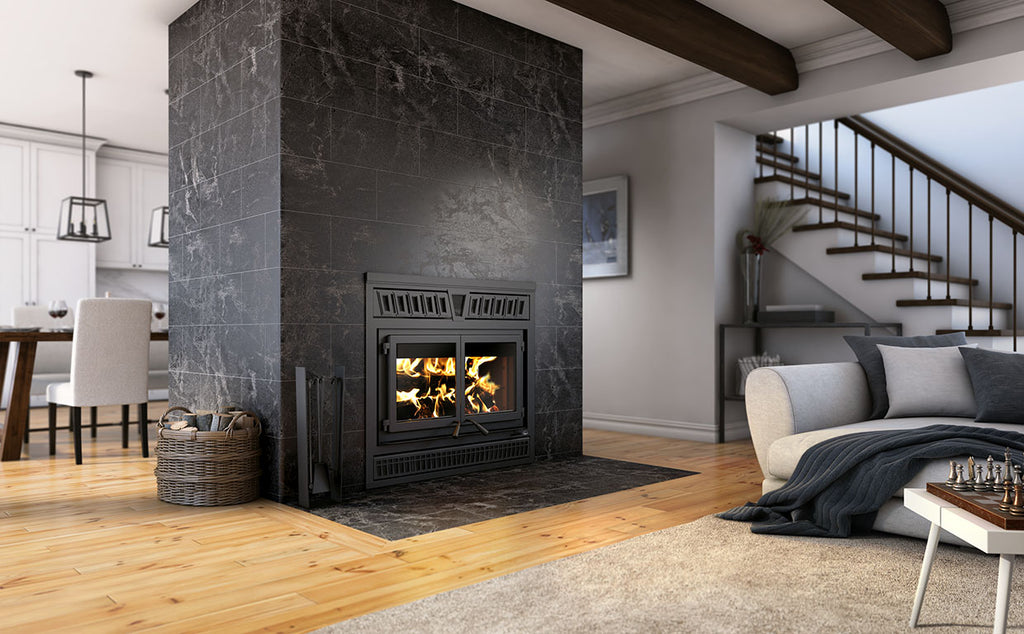

The largest model in our high-efficiency series, the Waterloo wood-burning fireplace is an additional heating source whose style is just as remarkable as its performance. Adorned with a crown-style faceplate, the Waterloo offers an impressive view of the flames. Behind its large glass doors, the firebox can hold a very large amount of wood to heat large spaces and burn for up to 11 hours on a single load.

The Waterloo’s smart air control system (patented) has been specifically designed to optimize combustion efficiency. Once the appliance is on and running, the combustion rate must be slowed down by manually closing the primary air damper. Then, when the system detects that the optimum combustion temperature has been reached, it automatically closes the second primary air damper and adjusts the secondary air control. Once the system is closed, it is possible to modulate the level of combustion by adjusting the auxiliary air control.

Appliance performance ⁽¹⁾

⁽¹⁾ Values are as measured per test method, except for the recommended heating area, firebox volume, maximum burn time and maximum heat output.

⁽⁾ Recommended heating area and maximum burn time may vary subject to location in home, chimney draft,heat loss factors, climate, fuel type and other variables. The recommended heated area for a given appliance is defined by the manufacturer as its capacity to maintain a minimum acceptable temperature in the designated area in case of a power failure.

⁽²⁾ The maximum heat output (dry cordwood) is based on a loading density varying between 15 lb/ft³ and 20 lb/ft³ and reloading intervals ranging from 60 to 120 minutes. Other performances are based on a fuel load prescribed by the standard without any reloading between start and finish. The specified loading density varies between 7 lb/ft³ and 12 lb/ft³. The moisture content is between 19% and 25%.

⁽³⁾ As measured per CSA B415.1-10 stack loss method.

⁽⁴⁾ Higher Heating Value of the fuel.

⁽⁵⁾ Lower Heating Value of the fuel.

⁽⁶⁾ Performances based on a fuel load prescribed by the standard at 7 lb/ft³ and with a moisture content between 19% and 25%.

⁽⁷⁾ Optimum overall efficiency at a specific burn rate (LHV).

⁽⁸⁾ The optimum heat transfer efficiency is for the low burn rate (using HHV) and represents the appliance’s ability to convert the energy contained in the wood logs into energy transferred to the room in the form of heat and does not take into account the chemical losses during combustion.

⁽⁹⁾ This appliance is officially tested and certified by an independent agency.

⁽¹⁰⁾ Carbon monoxyde.

General features
