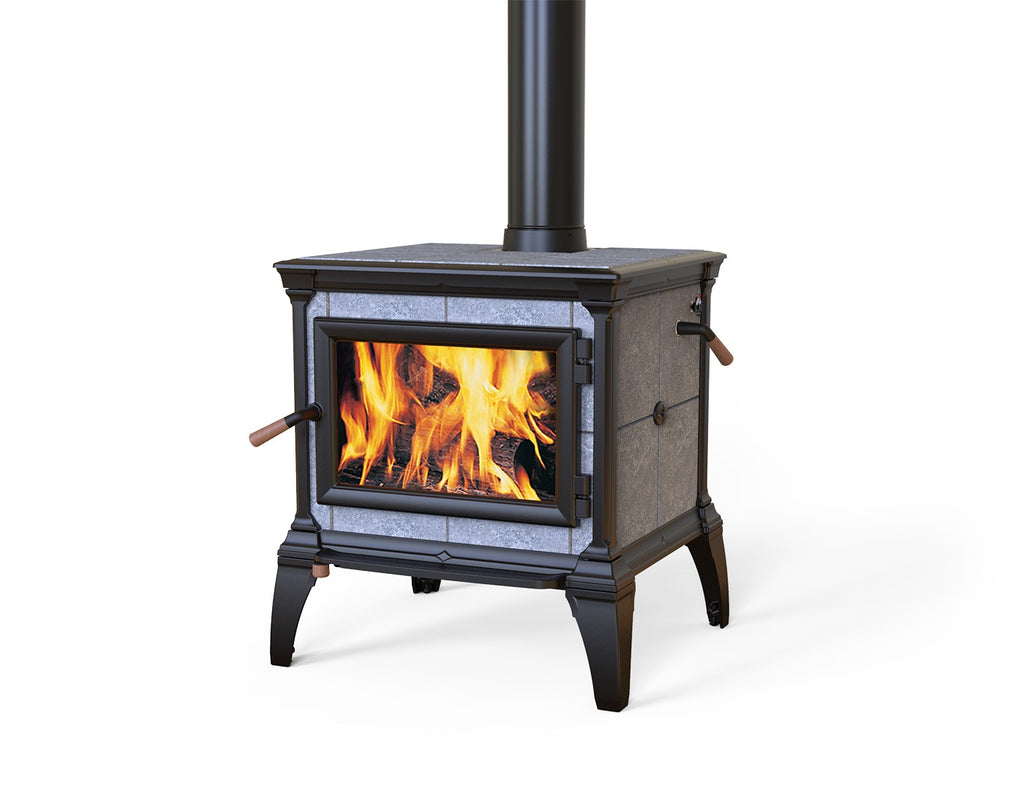

Mansfield Wood Stove
Description/Specs
Features
TruHybrid™ Technology
The Mansfield burns cleanly and efficiently using primary, secondary, and tertiary combustion. Enjoy clean heat with our TruHybrid™ technology.
Deep Firebox
Our largest soapstone stove has plenty of space for making big fires to heat your great room or your whole house! The Mansfield boasts a 21½” wide by 20½” deep firebox.
The Comfort of Soapstone
Over 230lbs of soapstone are used to construct the Mansfield to offer you plenty of long-lasting comfortable heat.
Specifications
Ash Pan: Optional
BTU: Up to 80,000
Efficiency: 78% HHV
EPA Certified: 0.54 g/hr
Finish: Brown Enamel, Matte Black
Firebox Capacity: 3.2 cu ft
Flue Exit Diameter: 6
Flue Exit Location: Top or Rear
HeatLife: 30 Hours of heat
Heats up to: 2,500 sq ft
Maximum Log Length: 21″
Model: 8013
Stove Type: Soapstone Wood Stove
Weight: 605
Accessories
Ash Pan: 90-54240
Rear Heat Shield: 90-68210
Convection Blower: 90-57210
Outside Air Adapter: 90-53220
Clearances
- Side: 23″
- Rear: 19″
- Corner: 14″
Single-wall connector pipe, no rear heat shield
- Side: 23″
- Rear: 6″
- Corner: 14″
Double-wall connector pipe with rear heat shield
Video
$7,208.00
Shipping calculated at checkout.
TruHybrid™
Combustion Technology
Our TruHybrid™ system combines primary, secondary, and tertiary combustion to deliver exceptional performance.
The clean combustion is visible. Thanks to the TruHybrid™ technology, a roaring fire won’t produce any visible smoke from the chimney.
The Most Efficient
Clean Combustion, High Efficiency
HearthStone is the leader in wood burning technology.
The TruHybrid™ system combines primary and secondary combustion with a tertiary combustion using a catalyst to achieve ultra clean combustion that surpasses 2020 EPA clean air standards. ALL of our wood stoves use a fully adjustable system that allows you to burn high and hot, or low and slow to suit your heating needs while maintaining efficiency.
Our Materials
Clean Combustion, High Efficiency
Each HearthStone is handcrafted using a combination of precision-made components in cast iron, soapstone, steel, ceramic, and various other materials. Our commitment to quality and attention to detail ensures that your product will serve you faithfully for years to come.
Soapstone
Soapstone is a natural material that absorbs the high heat of a fire, then radiates a gentle heat into the room. Soapstone warms the objects in your home, not just the air, resulting in a comfortable, livable heat.
Cast Iron
Using selected raw and recycled material, our iron parts are produced in our foundry in Spain. Our modern casting facility guarantees durable, reliable, high-quality cast iron parts.
Morrisville, Vermont
Vermont Craftsmen
For years, our dedicated Vermont craftsmen have been committed to building quality stoves, handcrafting each HearthStone to meet the highest standards using the finest materials and the most advanced heating technology. As proof, every HearthStone soapstone stove is signed by the stove builder.
The HearthStone brand is an assurance – a guarantee that your appliance is built in the rich tradition of our company, and will serve you faithfully for years to come.
Thanks for making HearthStone part of your life.
